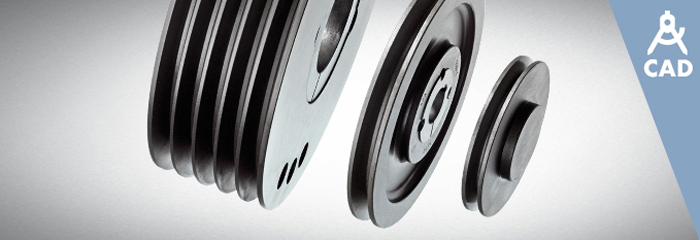

optibelt KS V-grooved pulleys for taper bushes and cylindrical bores. Special pulleys according to drawing, description or sample on request.
Profiles |
|
| TB SPZ/10 | 50/1 bis 630/6 |
| TB SPA/13 | 63/1 bis 630/5 |
| TB SPB/17 | 100/1 bis 1000/10 |
| TB SPC/22 | 200/3 bis 1250/10 |
| SPZ/10 | 45/1 bis 355/3 |
| SPA/13 | 50/1 bis 560/5 |
| SPB/17 | 56/1 bis 630/6 |
| SPC/22 | 180/1 bis 630/6 (non stock items) |

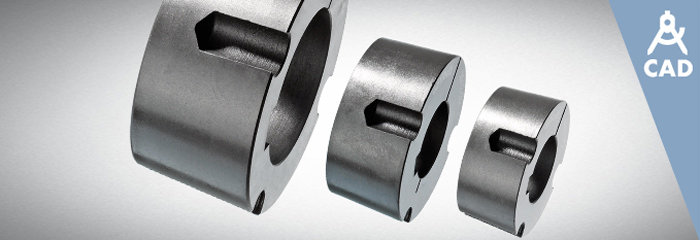

Optibelt taper bushes are available with a metric bore (DIN 6885 Part 1) or as BS 46 bushes with an inch bore. Special pulleys according to drawing, description or sample on request.
Sizes and bore diameters |
|
| 1008 - 5050 | 10 - 125 mm |
| 1008 - 5050 | 3/8 - 5 in |
Downloads |
|
Selection from the metal product range |
|

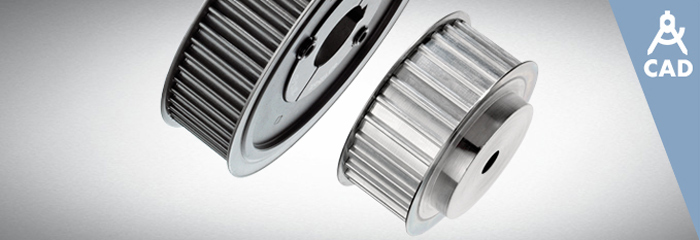

optibelt ZRS timing belt pulleys for taper bushes and cylindrical bores. Special pulleys according to drawing, description or sample on request.
Sections, Teeth and Timing belt width |
|
| TB 5M | 34-150 / 15 mm |
| TB 8M/8M | 22-192 / 20-85 mm |
| TB 14M/14M | 28-216 / 40-170 mm |
| 3M | 10-72 / 6-15 mm |
| 5M | 12-72 / 9-25 mm |
| TB 8MDC | 25-192 / 12-62 mm |
| 8MDC | 22-38 / 12-62 mm |
| T2,5 | 12-60 / 4 und 6 mm |
| T5 | 10-60 / 10-25 mm |
| T10 | 12-60 / 16-50 mm |
| AT5 | 12-60 / 10-25 mm |
| AT10 | 15-60 / 16-50 mm |
| TB L | 18-120 / 050-100 |
| TB H | 16-120 / 100-300 |
| TB XH | 18-48 / 200-400 |
| XL | 10-72 / 025, 031 und 037 |
| L | 10-84 / 050 - 100 |
| H | 14-120 / 075-300 |
| XH | 18-96 / 200-400 |
Downloads |
|
Product information - optibelt standard timing belt pulleys, imperial, for cylindrical bores |
|
Product information - optibelt ZRS metric timing belt pulleys for cylindrical bores |
|
Product information - optibelt ZRS standard timing belt pulleys, imperial, for taper bushes |
|
Product information - optibelt ZRS DELTA Chain timing belt pulleys |
|
Product information - optibelt ZRS HTD timing belt pulleys for cylindrical bores |
|
Product information - optibelt ZRS HTD timing belt pulleys for taper bushes |
|

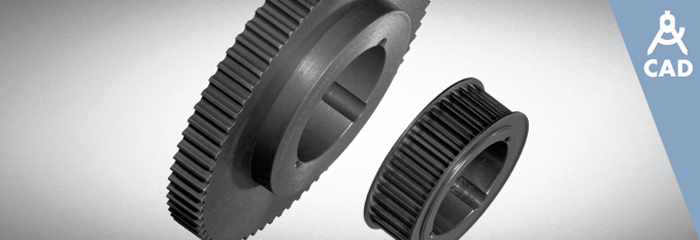

Optibelt ZRS DC timing belt pulleys for taper bushes and cylindrical bores, suitable for the new optibelt DELTA Chain. Special pulleys according to drawing, description or sample on request.
Sections and lengths |
|
| TB 8MDC | 25-192 / 12-62 mm |
| 8MDC | 22-38 / 12-62 mm |
Downloads |
|
Selection from the metal product range |
|

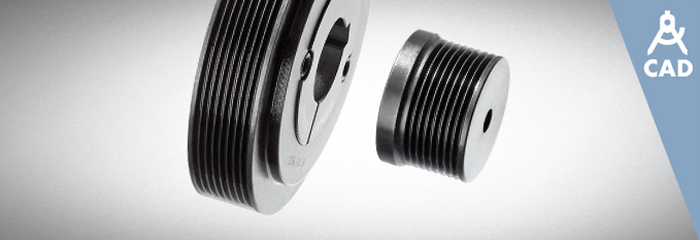

optibelt RBS ribbed belt pulleys for taper bushes and cylindrical bores. Special pulleys according to drawing, description or sample on request.
Sections, Number of grooves and Diameters |
|
| TB PJ | 8-16 / 56-315 |
| TB PL | 8-16 / 75-315 |
| PJ | 8-12 / 40-63 |
| PL | 8 / 75-85 |
Downloads |
|
Selection from the metal product range |
|

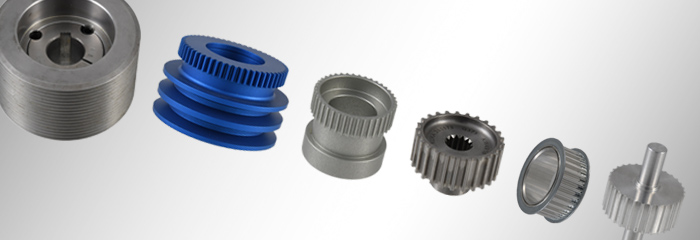

Drive pulleys for frictional or positive connections according to drawings or description in all standard profiles and materials. Special pulleys according to drawing, description or sample on request.

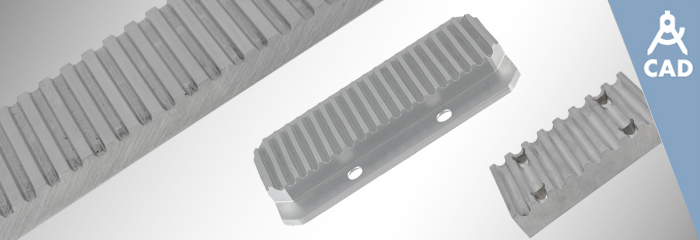

Clamping plates are a safe and cost-effective solution for open-ended belt assembling. The form-fitting clamping takes place by precisely fitting tooth profiles. Available as pre-drilled standard clamping plates, undrilled long length bars as well as special clamping plates according to drawing on request.
Downloads |
|
Selection from the product range |
|

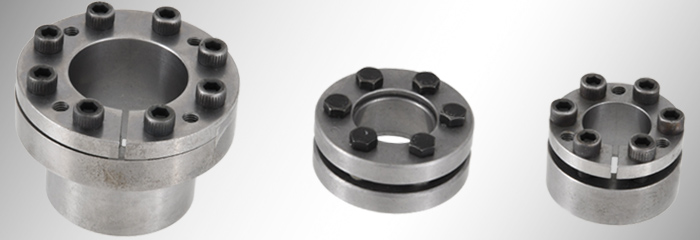

optibelt CE clamping elements are available in self-centring and non-self-centring versions. They are very well suited for the transmission of high torques in conjunction with good concentricity and assembly properties.
Downloads |
|
Selection from the product range |
|

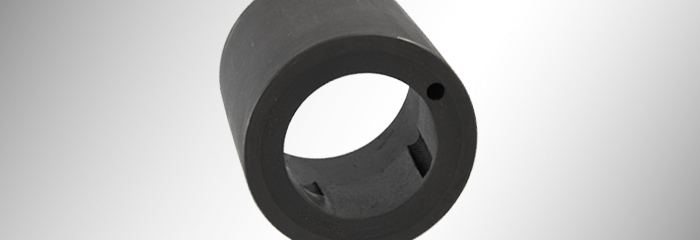

optibelt FS Flat-faced pulleys for taper bushes. Special pulleys according to drawing, description or sample on request.
